Commercial Kitchen Extraction Canopy Kit 1200 mm & Motor

Commercial Kitchen Extraction Canopy Kit 1200 mm & Motor

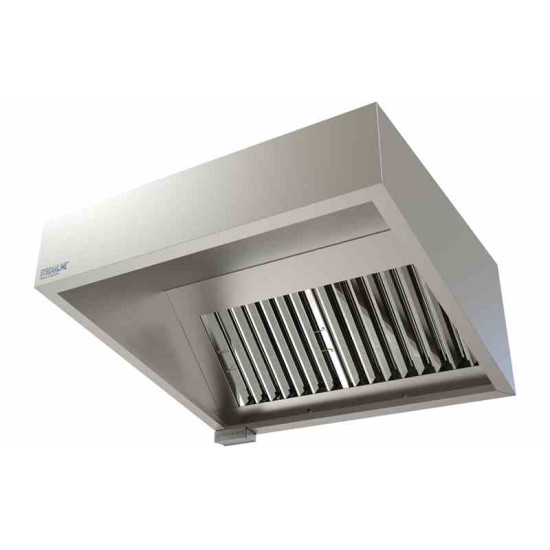

Commercial kitchen extraction fan canopy hood with built in extractor fan for fast and efficient kitchen extraction.  The kitchen extraction canopy is suitable for both gas and electric cooking equipment.  The hood comes with easy clean removable kitchen grease baffle filters and full length grease channel for easy cleaning.  This product has been designed specifically for easy installation and provides amazing value for money compared to other systems on the market today.  We guarantee you will not find this level of performance and quality anywhere else.


  The extraction hood is 100% commercial stainless steel construction.  The stainless steel has an elegant brushed finish and looks clean and modern.

  The construction has formed stainless steel safety edges formed into all edges for safe and easy cleaning.

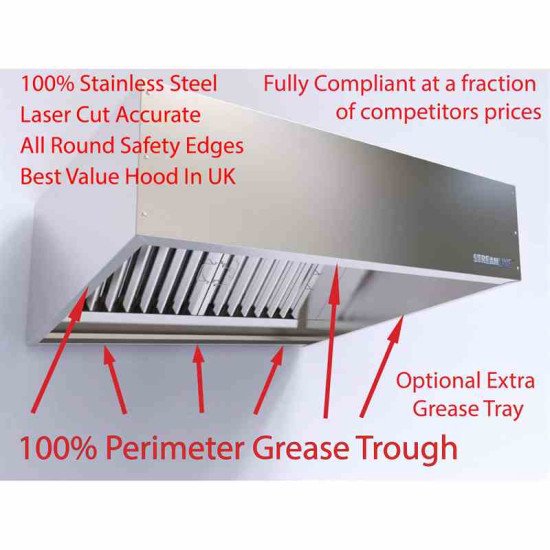

  The hood has an integrated condense grease channel around the perimeter as per the requirements of DW/172.  Taking this a step further we have a full length collector channel at the rear of the canopy to further aid in easy cleaning.

  The extractor fan motor is a high quality twin inlet centrifugal design with high volume and high pressure extract fan with high quality ball bearing construction than runs at a low 60dB(A)

  The extract fan motor has 4 speeds that are easily selected from our rugged 4 step speed controller. It is very suitable for small cooking applications in a commercial setting such as cafes, sandwich shops, coffee shops.

Extraction Canopy Hood Kit Contents

  1off Stainless steel extraction canopy

  2off side infil panels

  2off Baffle filters

  1off Internally mounted extractor fan motor - easy to install, simply screws into place.

  1off Extractor fan 4 Speed Controller

  1off 150mm diameter ductwork with an extra coupler

  1off 90 deg bend

  1off Termination cowl please mention at order stage if require a wall cowl or a roof cowl.

  Duct Fixing pack


  • Easy to install
  • 4 speed controller
  • Quiet and powerful fan - more than 5 times more powerful domestic units 950m3/hr vs 200m3/hr
  • Commercial kitchen hood for Gas and electric equipment
  • Commercial kitchen ventilation regulations compliant
  • Good for commercial canopy grills, cafes, coffee shops

Canopy Fan Hood Dimensions

  1200mm (Width) x 1100mm (Depth)

  Height:          500mm (Back) & 250mm (Front)

  Fan diameter: 150mm

Voltage 230 Volts
Amps Starting current = 2 Amps Full load current =1.1 Amp
Dimensions 1200mm (Length) x 1100mm (Depth) x 500mm (Back Height) / 250mm (Front Height)
Air Flow Pressure 150 Pa
Air Flow Volume 950 m3/hour nearly x5 times more powerful than standard hoods
Sound Pressure Level (dBA) 48 dB(A) distance corrected at 1m facade 60 dB(A) in free field conditions
Finish Brushed Satin Finish
Material Stainless Steel 100% Construction

Commercial Kitchen Extraction Canopy Kit 1200 mm & Motor

  • Product Code: Commercial Kitchen Extraction Canopy Kit 1200 mm & Motor
  • Availability: In Stock
  • £541.67
  • Price in reward points: 580

Available Options
