Commercial Kitchen Ventilation System Kit 3000mm 10 Foot

Description
Design & Specification

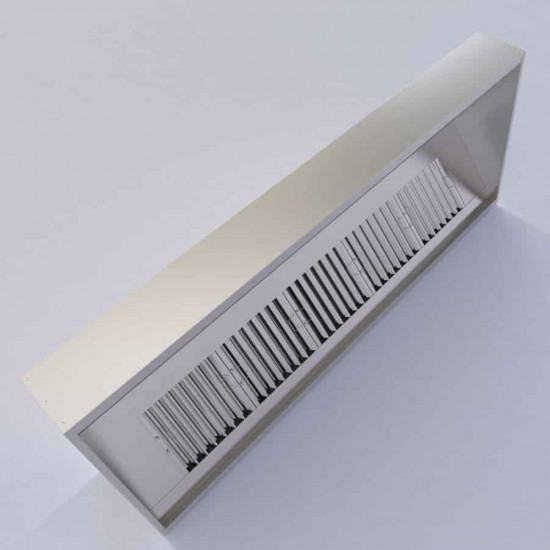

Commercial Kitchen Ventilation System Kit 3000mm

Dimensions: 3000mm (L) x 1100mm (Depth)

Height: 500mm(Back) & 250mm(Front)

We can manufacture in one piece or more commonly in two halves that bolt together to form a full length hood.

The kit includes

Stainless Steel Baffle Filters - easy to clean with easy grab handles. These are a non blocking type of filter. Mesh filters will block over time, whereas baffle filters work best when clean and shiny, but continue to work as they get dirty.

High quality stainless steel construction

Commercial grade extraction fan - with connection pieces

A 90 degree bend and an external termination cowl.

Commercial ductwork 1 metre length

The kit comes with a speed controller

We can customise the kit if required with more bends and longer ductwork, please contact us with your requirements and we will send you a purpose built quotation with everything you need.

ELECTRICAL
Voltage	220 Volts
Amps	Starting current = 6 Amps Full load current =1.5 Amps
TECHNICAL
Dimensions	3000mm (Length) x 1100mm (Depth) x 500mm (Back Height) / 250mm (Front Height)
Air Flow Pressure	65 Pa
Air Flow Volume	2378 m3/hour
Sound Pressure Level (dBA)	48 dB(A)
VISUAL
Finish	Brushed Satin Finish
Material	Stainless Steel
