- Model: Commercial Kitchen Extractor 950mm & Motor
- Weight: 60.00kg
- Dimensions: 950.00mm x 1,100.00mm x 500.00mm
Available Options

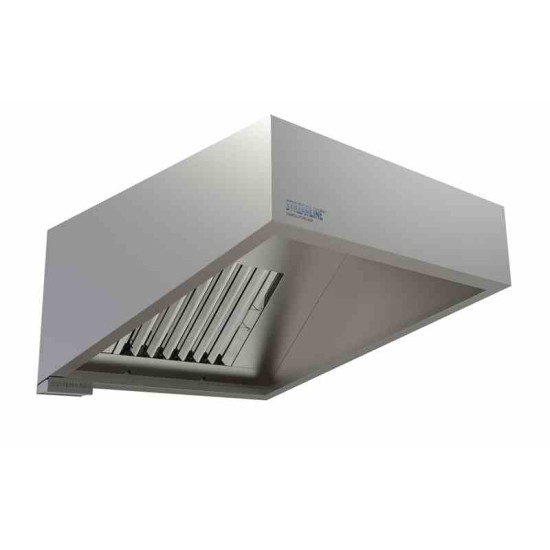

Commercial Kitchen Extraction Canopy Kit 950 mm & Motor
Description
Commercial kitchen extraction fan canopy hood with built in extractor fan for fast and efficient kitchen extraction. The kitchen extraction canopy is suitable for both electric cooking equipment. This can be upgrade for use with gas equipment by increasing the size of the fan. See our upgrade kit option. The hood comes with easy clean removable kitchen grease baffle filters and full length grease channel for easy cleaning. This product has been designed specifically for easy installation and provides amazing value for money compared to other systems on the market today. We guarantee you will not find this level of performance and quality anywhere else.
Materials
The extraction hood is 100% commercial stainless steel construction. The stainless steel has an elegant brushed finish and looks clean and modern.
The construction has formed stainless steel safety edges formed into all edges for safe and easy cleaning.
The hood has an integrated condense grease channel around the perimeter as per the requirements of DW/172. Taking this a step further we have a full length collector channel at the rear of the canopy to further aid in easy cleaning.

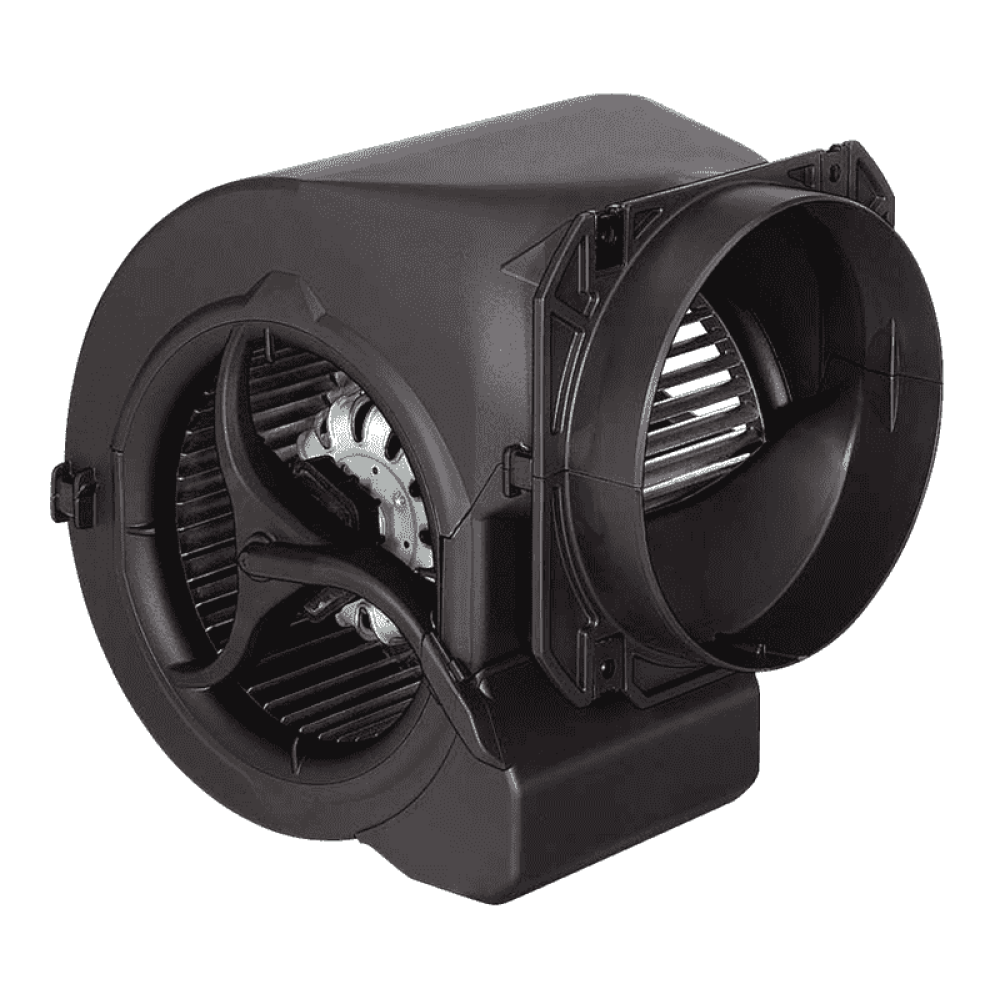

The extractor fan motor is a reliable space saving plate fan design with high volume running at a low 61dB(A) noise level.
The extract fan motor has a variable speed controller. It is very suitable for small cooking applications in a commercial setting such as cafes, sandwich shops, coffee shops.

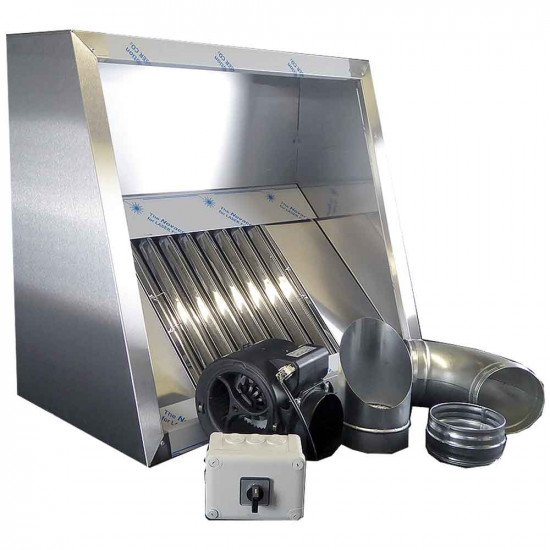

Extraction Canopy Hood Kit Contents
1off Stainless steel extraction canopy
2off side stainless steel infill panels
1off Baffle filters
1off Internally or externally (upgraded) mounted extractor fan motor - easy to install, simply screws into place.
1off Extractor fan variable Speed Controller
Features
- Easy to install
- Variable speed controller
- Quiet and powerful fan - more than 5 times more powerful domestic units 950m3/hr vs 200m3/hr
- Commercial kitchen hood for Gas and electric equipment
- Commercial kitchen ventilation regulations compliant
- Good for commercial canopy grills, cafes, coffee shops
Canopy Fan Hood
Dimensions
950mm (Width) x 800mm (Depth)
Height: 500mm (Back) & 250mm (Front)
Fan diameter: 150mm
Please select your delivery method at checkout.
| ELECTRICAL | |
| Voltage | 220 Volts |
| Amps | Starting current = 2 Amps Full load current =1.1 Amps |
| TECHNICAL | |
| Dimensions | 950mm (Length, Left to Right) x 1100mm (Depth, Front to Back) x 500mm (Back Height) / 250mm (Front Height) Optional 800mm Depth, Front to Back) |
| Air Flow Pressure | 150 Pa |
| Air Flow Volume | 980 m3/hour |
| Sound Pressure Level (dBA) | 48 dB(A) |
| VISUAL | |
| Finish | Brushed Satin Finish |
| Material | Stainless Steel |
