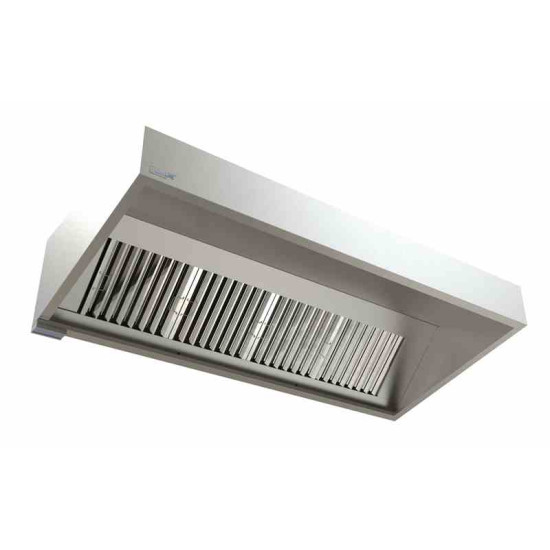

Commercial Kitchen Extraction Hood 2480mm Kit

Commercial Kitchen Extraction Hood 2480mm Kit


Commercial kitchen extraction extractor hood with powerful external extractor fan for fast and efficient kitchen extraction.  The kitchen extraction canopy is suitable for both gas and electric cooking equipment.  The kitchen fan hood comes with easy clean removable kitchen grease baffle filters and full length grease channel for easy cleaning.

The kitchen fan can discharge from the rear or the top as your require. We have a number of configurations from you to choose from, please select when ordering.


  The extraction hood is 100% commercial stainless steel construction.  The stainless steel has an elegant brushed finish and looks clean bright and modern.

  The construction has formed stainless steel safety edges formed into all edges for safe and easy cleaning.

  The hood has an integrated condense grease channel around the perimeter as per the requirements of DW/172.  Taking this a step further we have a full length collector channel at the rear of the canopy to further aid in easy cleaning.

  The extractor fan motor is a high quality twin inlet centrifugal design with high volume and high pressure extract fan with high quality ball bearing construction than runs at a low 65dB(A)

  The extract fan motor has variable speeds that are easily selected from our rugged electronic speed controller. It is very suitable for commercial cooking applications in a commercial setting such as cafes, sandwich shops and coffee shops.

Extraction Canopy Hood Kit Contents

  1off Stainless steel extraction canopy

  2off side infil panels

  2off Baffle filters

  1off Externally mounted extractor fan motor.

  1off Extractor fan with Variable Speed Controller

  1off 350mm diameter ductwork with an extra coupler

  1off Wall Termination cowl

  Duct Fixing pack


Easy to install
Electronic Variable speed controller
Quiet and powerful fan
Commercial kitchen hood for Gas and electric equipment
Commercial kitchen ventilation regulations compliant
Good for commercial canopy grills, cafes, coffee shops

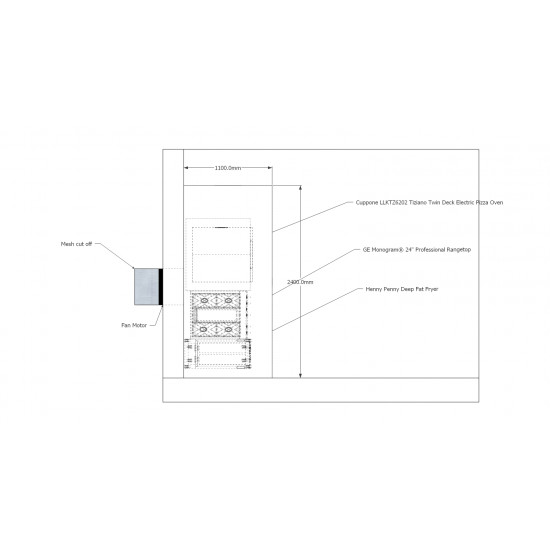

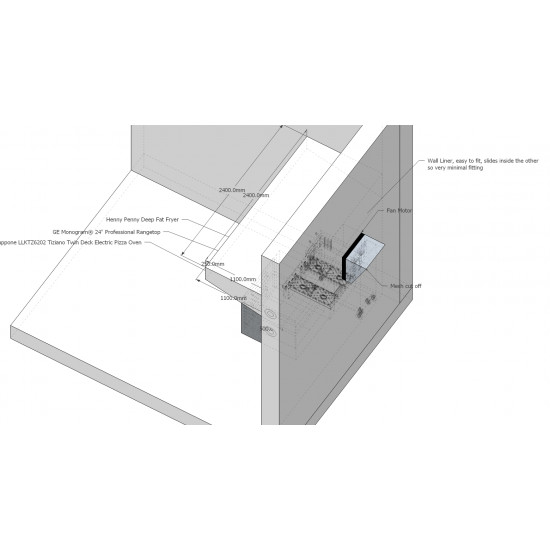

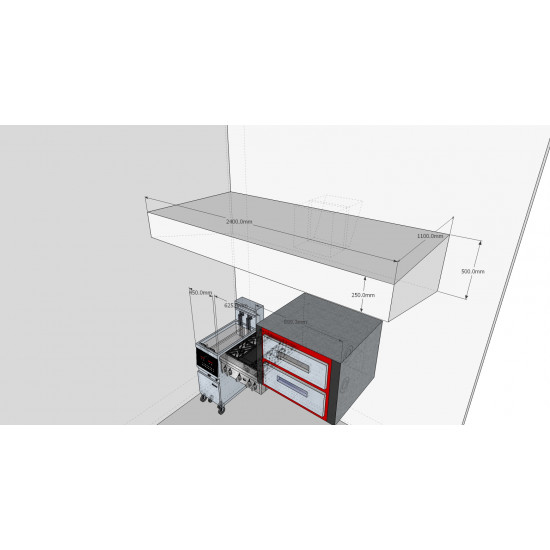

Canopy Fan Hood Dimensions

2480mm (Width) x 1100mm (Depth)

500mm (Back Height) & 250mm (Front Height)

Fan diameter: 355mm

Voltage 240 Volts
Amps Starting current = 8 Amps Full load current =6 Amps
Dimensions 2480mm (Length) x 1100mm (Depth) x 500mm (Back Height) / 250mm (Front Height)
Air Flow Pressure 65 Pa
Air Flow Volume 2380 m3/hour
Sound Pressure Level (dBA) 65 dB(A)
Finish Brushed Satin Finish
Material Stainless Steel

Commercial Kitchen Extraction Hood 2480mm Kit

  • Product Code: Commercial Kitchen Extraction Hood 2480mm Kit
  • Availability: In Stock
  • £1,450.00
  • Price in reward points: 450

Available Options
