- Model: Commercial Kitchen Extraction Canopy Kit 1500mm
- Weight: 50.00kg
- Dimensions: 1,500.00mm x 800.00mm x 500.00mm
Available Options
Commercial Kitchen Extraction Wall Canopy Hood Full Kit 1500mm - With filter, fan motor, speed controller
Description

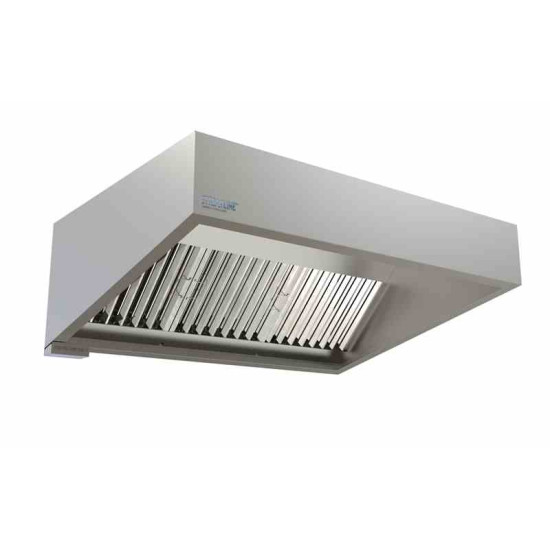

Commercial kitchen extraction canopy hood with built in extractor fan for fast and efficient kitchen extraction. The extraction canopy is suitable for both gas and electric cooking equipment, and comes with easy clean removable baffle filters and full length grease channel for easy cleaning.
Materials
The extraction hood is 100% commercial stainless steel construction. The stainless steel has an elegant brushed finish and looks clean and modern.
The fan motor is a high quality twin inlet centrifugal design high volume and high pressure extract fan with high quality ball bearing construction than runs at a low 60dB(A)
The extract fan motor has 4 speeds that are easily selected from our rugged 4 step speed controller.
Extraction Canopy Hood Kit Contents
1off Stainless steel extraction canopy
1off Internally mounted extractor fan motor
1off Extractor fan Speed Controller
Canopy Dimensions
1500mm (Width) x 800mm (Depth)
Height: 500mm (Back) & 250mm (Front)
Fan diameter: 150mm
For Light Duty Cooking
Example of an upgraded fan motor with a 1500 x 1400mm hood suitable for a comibination oven such as a Rational or UNOX
| ELECTRICAL | |
| Voltage | 220 Volts 50 Hz |
| Amps | Starting current = 2 Amps Full load current =1 Amp |
| TECHNICAL | |
| Dimensions | 1500mm (Length) x 800mm (Depth) x 500mm (Back Height) / 250mm (Front Height) |
| Air Flow Pressure | 100 Pa |
| Air Flow Volume | 1050 m3/hour |
| Sound Pressure Level (dBA) | 60 dB(A) |
| VISUAL | |
| Finish | Brushed Satin Finish |
| Material | Stainless Steel |
