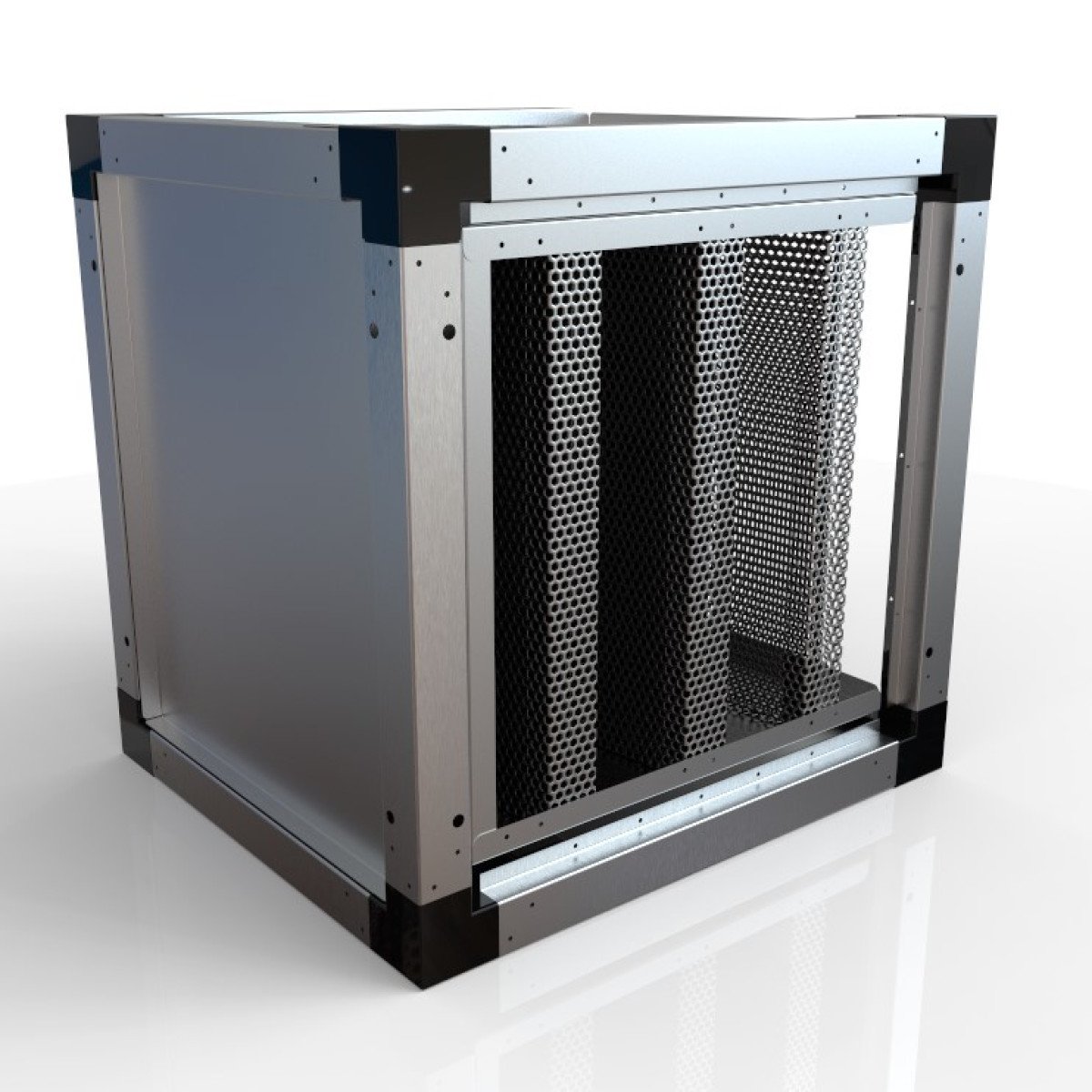

Commercial kitchen exhaust all in one air handling unit

Compact and easy to install unit with a complete odour control solution.

Fan motor

Air pre-filters, optional washable filters

Carbon filters

Refillable option for carbo filters

Optional ozone module for advanced odour control and cleanliness

Low-noise activated carbon filter system

High performance: 2,000 m³ per hour

Low energy consumption

Environmentally-friendly

Pre-filter and activated carbon filter

Air filtration and deodorisation: Effective removal of undesired smells

Quality

Material: Body made of aluminum with galvanized panels

Connection

Power: 550 Watt

Electrical connection: 1N/PE / 230V / 50 Hz

Dimensions

Outer dimensions (W x D x H): 1,200 mm x 670 mm x 500 mm - varies depending on airflow

Includes

Fan motor

Number of filters:

Recommendation

Change the pre-filter every month

Change the activated carbon filter every 6 months

Technical Data

Dimensions:

Width: 1,200 mm

Depth: 670 mm

Height: 500 mm

Details:

Device type: Exhaust air purification system

Number of filters: 6

Air turnover per hour: 2200 m3/hr

Maximum temperature: 50 °C

Maximum relative humidity: 70%

Electrical information:

Power: 650 Watt

Voltage: 240v

Frequency: 50 Hz

Phases: Single Phase

Amperage: 4.50 A

Weight: 92 kg
