Gas Interlock Kit Commercial Kitchen

Call Sales: 0330 325 0377  Email: info@ecanopy.co.uk
Gas Interlock Kit Commercial Kitchen
Gas Interlock Kit Commercial Kitchen
New -21 %
Gas Interlock Kit Commercial Kitchen
Gas Interlock Kit Commercial Kitchen
Gas Interlock Kit Commercial Kitchen
  • Stock: 10
  • Model: Gas interlock kit
  • Weight: 0.10kg
  • Dimensions: 250.00mm x 199.00mm x 216.00mm
  • SKU: GI-Kit
  • EAN: 07437515856830
  • MPN: GI-Kit
  • Location: Factory
190 samples sold
Product Views: 94
This offer ends in:
Day
Hour
Min
Sec
£190.00
£240.00
Price in reward points: 750

Available Options

Gas interlock system pack

complies with the mandatory requirement (BS 6173: 2001) for commercial kitchens. The IP56 rated control unit ensures there is no gas flow to burners unless air extraction is present.


Key Features

Clear LED indication

Integral 2 Channel Fan Current Monitor

Interfaces for:

Intake Fan DP, Extract Fan DP, CO2 Sensors, Remote Emergency Stop Buttons

Mains rated status relay for external monitoring

Built in time delays to avoid nuisance tripping

5 Year Warranty


Technical Specification

Power Supply 100 -240VAC 50/60Hz

Consumption (Max) 50W

Fan Current Rating 0.2 - 15A @ 230V

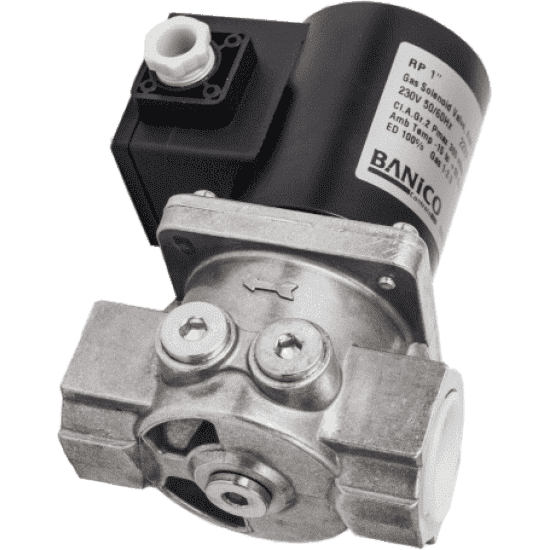

Power Output Gas Solenoid - Switched Mains

IP Rating IP65

Approval CE


Dimensions
Height 180 mm
Width 130 mm
Depth 60 mm / 65 mm including Stop ∓ Key Switch


The panel has interfaces for air DP switches as well as have integral fan current monitors for both the intake and extract. Each channel can be easily setup using the range select jumper (for greater accuracy) and a potentiometer for fine tuning.

If the intake or extract fan are not in operation the panel will still allow gas through until they have been open circuit for a full 30 seconds. As some systems use the valve status to enable the fans this will allow the fans to get up to speed and provide a healthy signal to the Gas safety interlock unit


External Device Interfaces

Valve Status SPDT - 5A @ 240V Max

CO2 Sensor 24V Signal to monitor external VFC

Intake Fan 24V Signal to monitor external VFC

Extract Fan 24V Signal to monitor external VFC

Remote Stop 24V Signal to monitor external VFC


Satisifies BS EU Standards

BS 6173:2009 &IGEMUP/19

% year Warranty and manufactured in the UK
